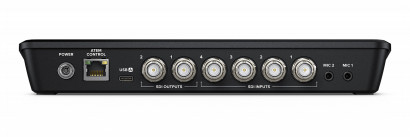

Blackmagic ATEM SDI - портативный 3G-SDI микшер для работы с несинхронными источниками сигнала.
Имеет на борту 4 стандартных SDI-входа, USB-веб-камеру, 2 SDI-выхода, аудиомикшер Fairlight с эквалайзером и динамикой, DVE для режима картинка в картинке, хромакей, пул медиафайлов для создания титров и бесплатное программное управление ATEM.
Внутренний кадровый синхронизатор обеспечивает синхронность входных источников даже при работе с разными стандартами видео.
USB-порт в сторонних устройствах опознается как обычная веб-камера и может быть использован для потокового вещания в Open Broadcaster, XSplit Broadcaster и т.д.
Встроенный звуковой микшер имеет 6-полосный параметрический эквалайзер, компрессор и лимитер. Управление микшером может осуществляться с любого ноутбука или настольного ПК с помощью программного обеспечения ATEM для Mac/Windows или благодаря опциональной панели управления ATEM 1 M/E Advanced Panel.
| Connections | |
| Total Video Inputs | 4 |
| Total Outputs | 3 |
| Total Aux Outputs | 2 |
| Total Audio Inputs | 2 x 3.5mm stereo mini jack. |
| Total Audio Outputs | None, embedded audio only. |
| Timecode Connection | None |
| SDI Video Inputs | 4 x 3G-SDI, 10-bit HD switchable. |
| 2 channel embedded audio. | |
| Video Input Re-Sync | On all 4 SDI inputs. |
| Frame Rate and Format Converters | On all 4 SDI inputs. |
| SDI Program Outputs | 2 |
| Ethernet | Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection. |
| Computer Interface | 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection. |
| Standards | |
| HD Video Input Standards | 720p50, 720p59.94, 720p60 |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | None |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec 709 |
| Colorspace Conversion | Hardware based real time. |
| Product Specifics | |
| Upstream Keyers | 1 |
| Downstream Keyers | 1 |
| Advanced Chroma Keyers | 1 |
| Linear/Luma Keyers | 2 |
| Transition Keyer | DVE only. |
| Total Number of Layers | 5 |
| Pattern Generators | 1 |
| Color Generators | 2 |
| DVE With Borders and Drop Shadow | 1 |
| Interface | Minimum monitor resolution of 1366 x 768. |
| Audio | |
| Audio Mixer | 6 input x 2 channel mixer. |
| Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. | |
| Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. | |
| Analog Input | Unbalanced stereo |
| Analog Input Delay | Up to 8 frames |
| Input Impedance | 1.8k |
| Max Input Level | +6dBV |
| Mic Plug In Power | Available on both 3.5mm mini jack connections. |
| Media Player | |
| Media Players | 1 |
| Channels | Fill and key for each Media Player. |
| Media Pool Still Image Capacity | 20 with fill and key. |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Control | |
| Control Panel | Built in control panel. Software control panel included. Supports optional hardware panel. |
| Control Panel Connection | Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection. |
| Control Panel Compatibility | Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel. |
| Control Panel Included | ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11. |
| Software | |
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
| Operating Systems | |
| Mac 11.0 Big Sur, | |
| Mac 12.0 Monterey or later. | |
| Windows 10 and 11. | |
| Power Requirements | |
| Power Supply | 1 x External 12V power supply. |
| Power Usage | 18W |
| Physical Specifications | |
| 9.35x4.67x1.38 (in) 23.9 (oz) | |
| Environmental Specifications | |
| Operating Temperature | 5° C to 40° C (41° - 104° F) |
| Storage Temperature | -10° to 60° C (14° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
