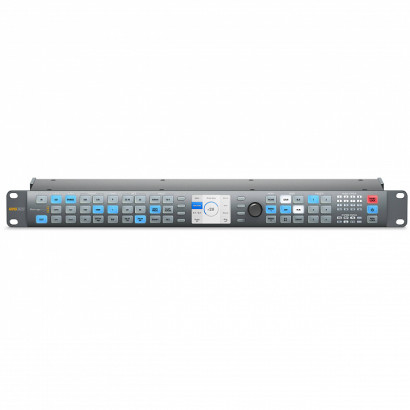

Видеоконвертер Blackmagic Teranex AV

Дополнительные услуги:
Все характеристики
Blackmagic Teranex AV - видеопроцессор с продвинутым функционалом, высокую эффективность которого высоко оценили ведущие мировые вещательные компании, студии пост-продакшена и организаторы мероприятий. Модели линейки обеспечивают 1089 вариантов преобразования между SD-, HD- и Ultra HD-форматами, имеют широкий набор разъемов и сквозной HDMI-интерфейс, обрабатывают сигнал с малой задержкой....
Полное описание
230 000
В корзину
Купить в 1 клик
Под заказ
Артикул: 4194
Доставка по всей России курьером, службой доставки или самовывозомОплата наличными или через платежные системыОбработка заказа в течении 2-ух часов
  • Обзор
  • Характеристики
  • Отзывы0

Видеоконвертер Blackmagic Teranex AV

ПОД ЗАКАЗ!

Blackmagic Teranex AV
- видеопроцессор с продвинутым функционалом, высокую эффективность которого высоко оценили ведущие мировые вещательные компании, студии пост-продакшена и организаторы мероприятий.

Модели линейки обеспечивают 1089 вариантов преобразования между SD-, HD- и Ultra HD-форматами, имеют широкий набор разъемов и сквозной HDMI-интерфейс, обрабатывают сигнал с малой задержкой. Они способны изменять частоту кадров, выполнять повышающую, понижающую и перекрестную конверсию между SD, HD и Ultra HD, а также добавлять или удалять преобразование 3:2. Использование современных запатентованных алгоритмов гарантирует исключительно высокое 10-битное качество изображения с поддержкой звука, скрытых субтитров, тайм-кода.

Процессор оснащен интерфейсом 12G-SDI, 4 SDI-разъемами для работы в режиме Quad Link, допускает ввод звука с техники класса Hi-Fi и через XLR, имеет вход HDMI, сквозные выходы. На задней панели предусмотрены металлические зажимы для предохранения кабелей.







Connections
SDI Video Inputs 1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
SDI Video Input L oops 1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
SDI Video Outputs 1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
Quad SDI Video Outputs 4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
HDMI Video Inputs 1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
HDMI Video Loop Inputs 1x HDMI 2.0 type A connector. Active Input loop.
HDMI Video Outputs 1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
SDI Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Inputs 8 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Outputs 8 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection (optional) 1x SMPTE optical fiber SFP socket.
Optical Fiber Video Inputs 1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Video Outputs 1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog Audio Inputs 2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.
AES/EBU Digital Audio Inputs 2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)
Dolby® Support Built In Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
Timecode Inputs Support for VITC/ATC. No support for LTC.
Timecode Outputs Support for VITC/ATC. No support for LTC.
Multi Rate Support SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Input 1x BNC - Black Burst in SD or Tri-level sync in HD.
Reference Output 1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer Interface 1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
Processor Interface Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1.5G-SDI HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
3G-SDI HD Video Standards 1080p50, 1080p59.94, 1080p60 levels A and B
2K Video Standards 2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio Sampling Television standard sample rate of 48kHz and 24-bit HD, 20‑bit SD.
Video Sampling 4:02:02
Color Precision 10-bit
Color Space REC 601, REC 709
SDI Video Standards 525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.
HDMI Color Precision 4:2:2 10‑bit
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Aspect Ratio Conversion Real time variable and fixed aspect ratio conversions.
Real Time Video Processing Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
Low Latency Processing Real time processing with 2 frame latency, available for select format conversions.
Format Conversion Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion.
Colorspace Conversion Hardware based real time
Still Store Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer.
Freeze Frame Temporarily freeze incoming live video.
Test Patterns SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion.
Output Switching Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black.
Software
Software Control Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac.
Internal Software Upgrade Via USB type C using the included Teranex Setup application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Specifications
19x5x1.75 (in) 4.4 (lb)
Power Requirements
Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50‑60Hz
Typical Power Consumption 42 watts
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non‑condensing
